Technical pipes

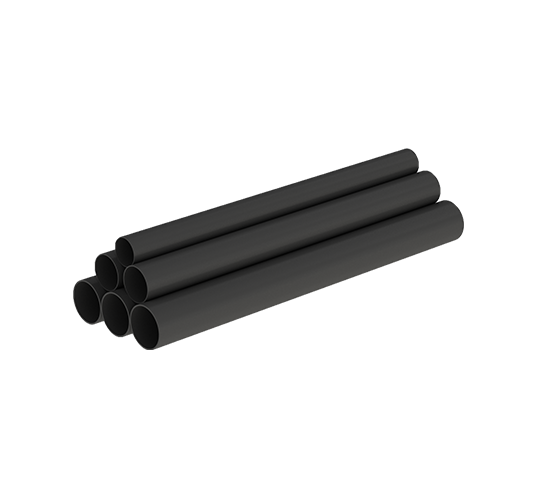

Technical pipes - 1

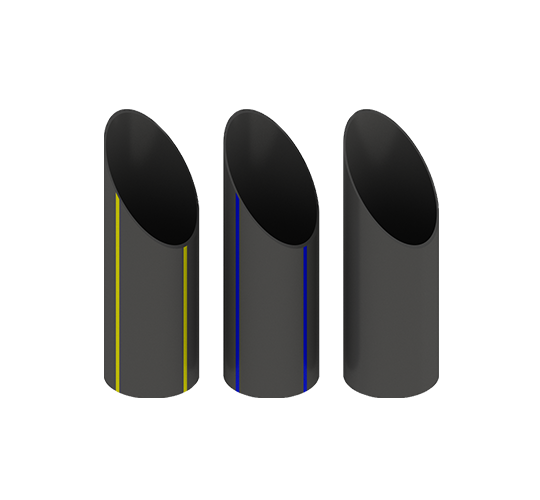

Technical pipes - 2
DescriptionSpecifications

Polyethylene non-pressure technical pipes are manufactured in accordance with TS BY 600012297.096-2011 "Polyethylene pipes and fittings" and are intended for the installation of free-flow underground pipelines, for laying communication cables and transporting liquid substances, to which polyethylene is chemically resistant, for all types of electrical work, as well as for low-responsibility and temporary structures of reclamation systems.

JSC “BPPP” is able to produce polyethylene pressure pipes in accordance with TS ВУ 600012297.123-2017 "Polyethylene pressure pipes" intended for pipelines transporting water at an operating temperature from 0 oС to 40 oС and rated pressure up to 2.5 MPa (25 bar), as well as other liquid and gaseous substances to which polyethylene is chemically resistant.

The use of recyclable materials in the production of pipes significantly reduces the cost of products, but it should be taken into account that it is the properties of such polyethylene that limit its scope. The main indicator is SDR (the ratio of the product diameter to its wall thickness).


Outside diameter: from 20 mm to 630 mm

  • Purpose:

    TS BY 600012297.123-2017 - for gravity systems for transporting substances to which polyethylene is chemically resistant, as a protective case for laying in a trench;

    TS BY 600012297.096-2011 - used for laying pressure and non-pressure pipelines.

    When choosing a pipe size, it is necessary to take into account the effect of external and internal loads that affect the operation of the pipeline in each specific case!

Standard length (according to the customer's order, pipe lengths can be different):

  • outer diameter is from 20 mm to 110 mm inclusive - in lengths or in coils up to 300 m (depending on the diameter);

  • outer diameter is from 110 mm to 630 mm inclusive - in lengths up to 13 m.

    Appearance: black


    Send a completed application by mail truba@bzpi.by
