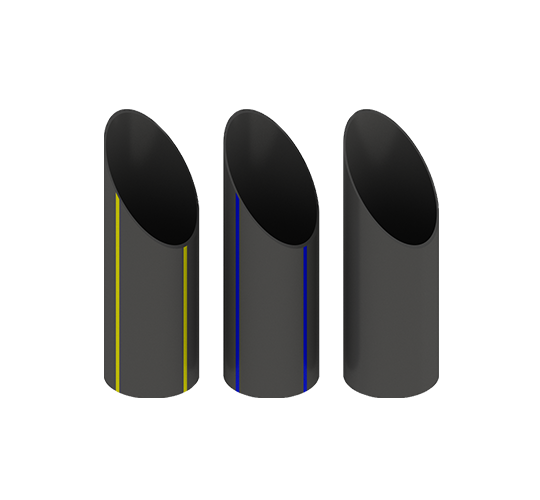

Water pipes are manufactured in accordance with GOST 18599-2001 "Polyethylene pressure pipes" and are intended for pipelines transporting water including for drinking and household uses, at an operating temperature from 0 oС to 40 oС (standard temperature is 20 oС) and rated pressure up to 2.5 MPa (25 bar), as well as other liquid and gaseous substances to which polyethylene is chemically resistant.
Polyethylene pipes for external cold water supply networks have a number of advantages in comparison with metal pipelines:
corrosion resistance;
long lifetime;
simplicity and ease of installation;
flexibility and elasticity, etc.
Outside diameter: from 20 mm to 630 mm
Standard length (according to the customer's order, pipe lengths can be different):
outer diameter is from 20 mm to 110 mm inclusive - in lengths or in coils up to 300 m (depending on the diameter);
outer diameter is from 110 mm to 630 mm inclusive - in lengths up to 13 m.
Types of raw materials and materials used: PE 100, PE 80, PE 32 compositions/
Process pressure: from 0.25 MPa to 2.5 MPa ! When choosing the pipe size, it is necessary to take into account the effect of external and internal loads affecting the operation of the pipeline in each specific case!
Operating temperature: from 0 ° C оСfrom 0 ° C to 40 ° о С
